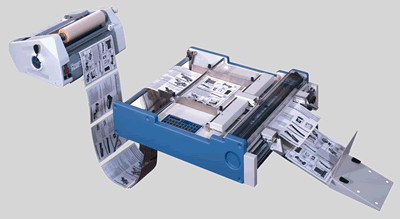

Automatic cutter 51 RTXY










Download pdf

The automatic cutter 51 RTXY has been designed by the DICUS technicians to enable two different proceedings:

1 - Transversal and longitudinal cut of regularlyincapsulated sheets with pre-set margins on four sides

2 - Cut of various material in sheets of predetermined format

The 5 1 RTXY is provided with mobile circular blades which are selfsharpening and made of a special chromium steel so to guarantee resistance against corrosion and wear.

The new cutting System of the 51 RTXY is also foreseen with nine different transport speeds, easily to be selected by the operator on the command panel. These speeds offer compatibility and thus connection with most of the laminators all the data set on the panel are visualized on a LC-display.





Performances

•  Cutting allowed for all photographic supports and prints made with     ink-jet equipments
•  Automatic cut in both directions (X-Y)
•  Max. format of prints:                          51x76 cm
•  Min. format of prints:                           10x10 cm
•  Minimum speed:                                  4,8 mt/min.
•  Maximum speed:                                 15 mt/min
•  Regulation vertical knifes:                    min.55mm(closing)
                                                             max. 570 mm (opening)

Technical data

Dimensions:

74x72x21 cm

Weight:

45 kg

Feed tension :

117V-60Hz;

220V - 50Hz; 240V - 50Hz

Electrical input :

250W

General Fuse :

117V-3.15A:

220/240 - 2A

Noise:

73,4 dBA



Allowed cutting margins based on thickness
of film used on laminator

Thikness of lamination film

Lateral sides

A

Interval between prints

B
Basic weight of laminated sheets In format A3-A4

25 Micron


Zero - or
Min. 6 mm
Max. 50 mm

Min. 5 mm
Max. 50 mm

Min. 80 g
Max. 240 g

42 Micron


Zero - or
Min. 3 mm
Max. 100 mm

Min. 5 mm
Max. 50 mm

All

125 Micron




Min. 5 mm
Max. 80 mm

All
