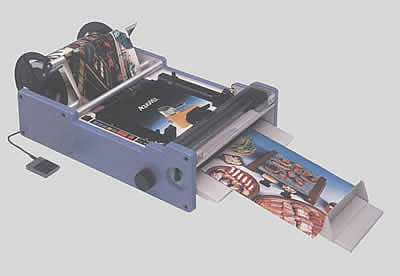

13RP, 31RP - Fully automatic cutters with photosensor reading punch marks

The RP series cutters have been designed in order to effect two different cutting operations with the following kinds of rollpapers:

• Paper rolls printed on rolleasels or printers having a punch marking System

• Paper rolls printed on rolleasels or printers without any signal

• Maximum cutting width                 13RP - 127 mm
                                                        31RP - 305 mm

• Possible cutting of bordered or borderless prints, by single or double cut with straight border

• Adjustable double cutting from 1 to 9 mm to eliminate automatically the gap between two prints

• Adjustment for single or doublé cutting for bordered or borderless prints by the turn of a lever

• All operations of the unit are controlled by a microprocessor of the highest reliability

• Programmable paper auto-advance with a minimum variation of 2/10 mm by a stepping motor, allowing a transport precision of +/- 0,1 mm

• Long life self-sharpening rotary blade

• Safety device in case of missed mark reading with automatic stop of the unit

• Safety device for cutting operations control

• Electronically driven cutting motor with alternating current

• Possible cutting of rolls of paper with emulsion up or down

• Electronic contral by a button, for paper transport adjustment and for slow or quick paper advance

• Digital (3 digits) copy counter with automatic zeroing

• Cycle selection switches with light indicator visualizing the actual function

• Facility for setting an adjustable delay for transport correction; slow motion switch (for rollpaper with only 1 signal)

• Copies collecting tray (on models 31 RP and 31 RP)

• Start-stop footswitch

• Flanges for rolls of paper up to 180 meters

13RP
31RP
Maximum cutting width
5"- 12,7 cm
12"- 31 cm
Production: prints per hour 31/2 x 31/2 " (9x9cm)
5x7" (13x18cm)
12x18" (30x45cm)
20x31" (51x76cm)

8160
5100
6720
4560
3600
2400

Dimensions
74 x 37 x 21 cm
74 x 50 x 21 cm
Dimensions with packing
95 x 57 x 38 cm
95 x 57 x 47 cm
Weight
32 kg
38 kg
Weight with packing
42 kg
47 kg
Absorbed power
300 W
300 W
Power supply
50/60 Hz - 117/220/240 V
50/60 Hz - 117/220/240 V
